Description

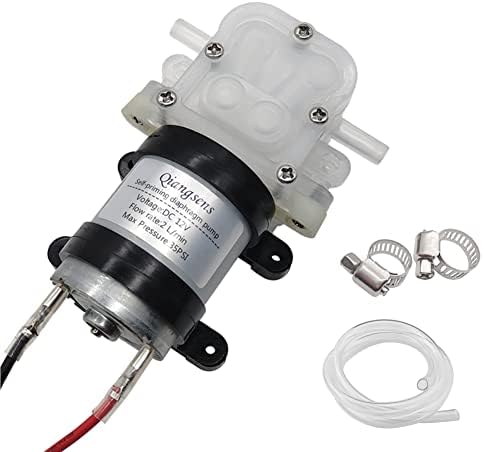

Feature:
The self-priming diaphragm pump has low noise, stable performance, good sealing, long service life, and can run continuously for a long time. Suitable for drinking fountains, cooling systems, garden watering, household appliances, RV camping.


Rated voltage: DC 12V
Working current: 0.7-1A
Flow rate: ≥2 L/min (0.5GPM)
Pressure: 35 PSI (2.4bar)
Vertical suction: 5 feet (1.5 m)
Load noise: ≤40DB

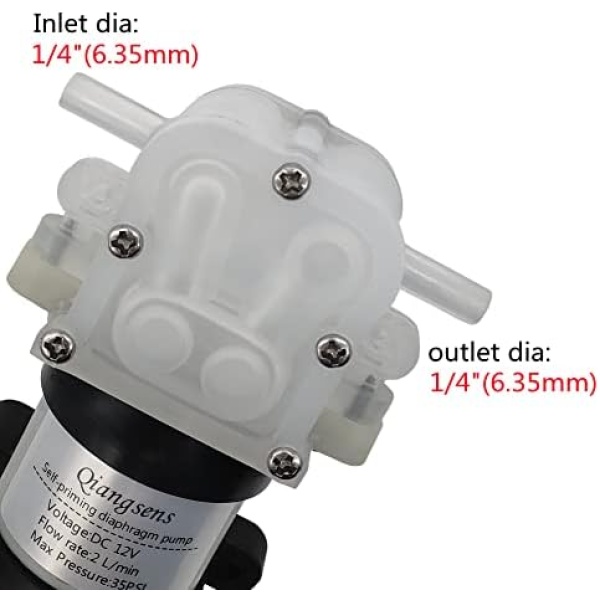

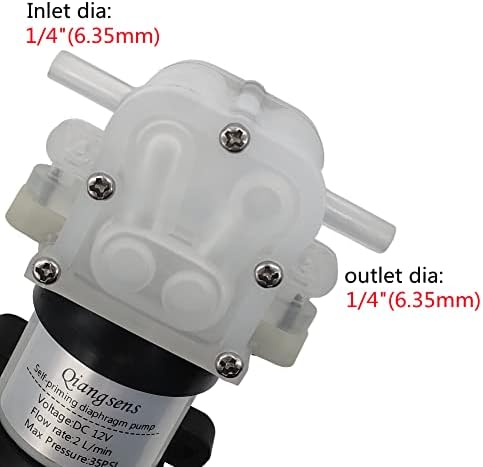

Inlet/Outlet: 6.35 mm (1/4 inch)
Operating temperature range: 0-70°C (32-158°F)
Drive mode: motor
Type: Diaphragm
Life: ≥1500h

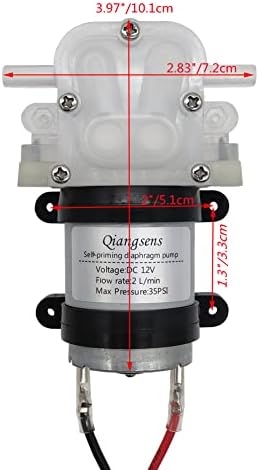

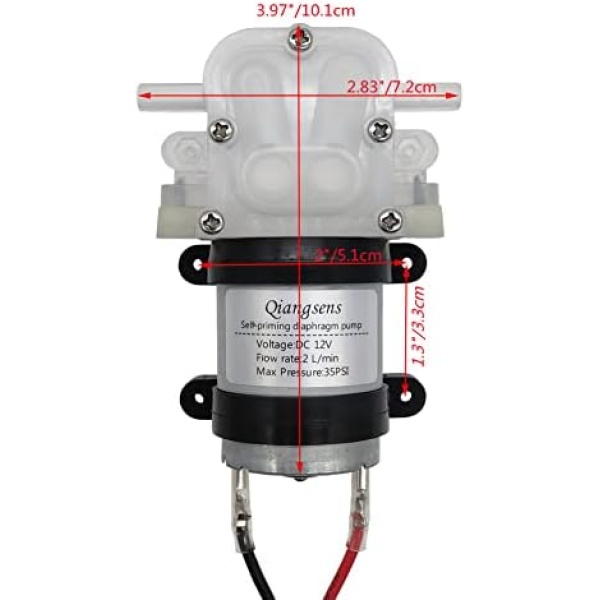

Product size: 101x72x40 mm


Note:

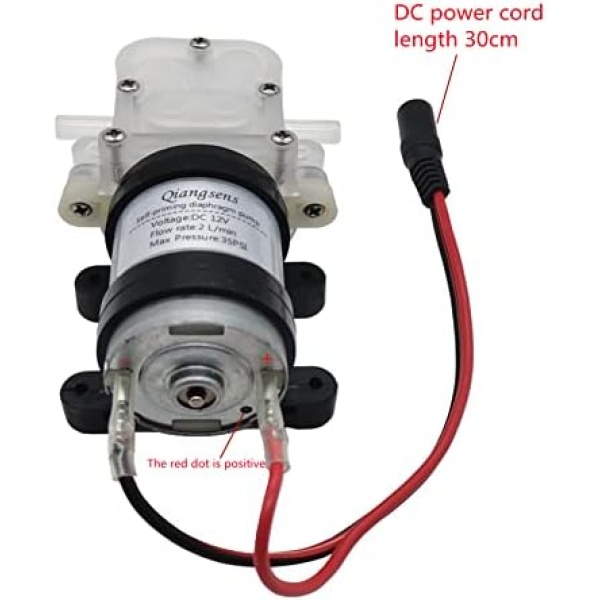

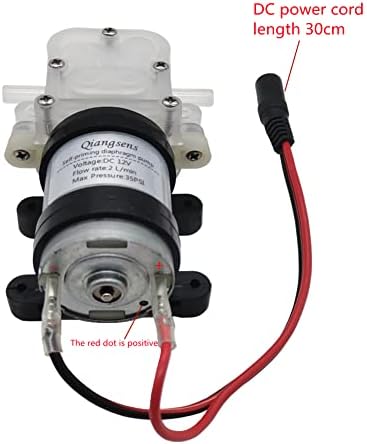

1. The red wire of the positive pole of the water pump and the black wire of the negative pole cannot be reversed
2. It cannot be idling for a long time, and idling time should not exceed 30 minutes, otherwise it will affect the life of the pump
3. It is normal if very little water is found in the pump because this is the residue of the test before packaging
4. The performance of this product has all been tested and it can work normally. If you encounter problems during use, please feel free to contact us, I wish you a happy shopping! Thank you!

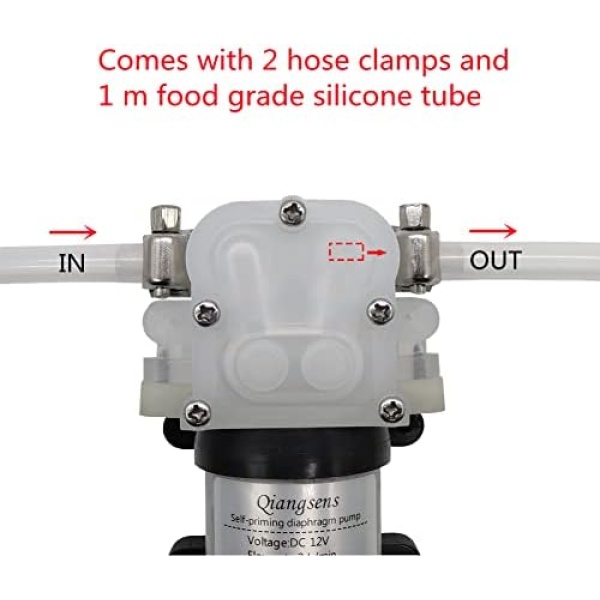

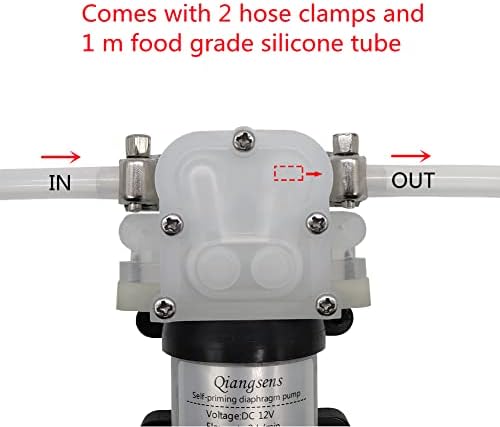

The package includes:
Diaphragm pump x1
Hose clamp x2
Silicone tube 1 m x1
Power cord x1
Spring terminal + sheath x2

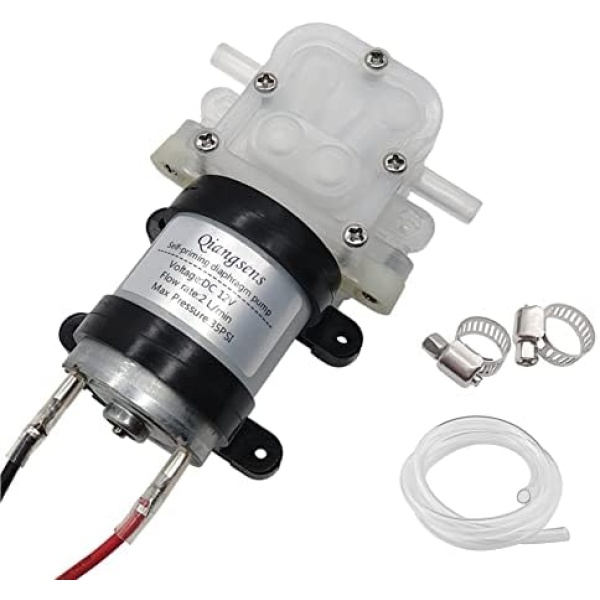

Complete accessories: 1m silicone tube, hose clamp, power cord, spring terminal
12V DC water pump: 2 L/min (0.5GPM) flow rate, 35 PSI (2.4bar) pressure, noise ≤40DB
Inlet and outlet: 1/4 inch hose port, vertical suction: 5 feet (1.5m)
The pump has a self-priming function to prevent liquid from flowing back. The pump can be installed above the water tank. Do not immerse the pump in water.

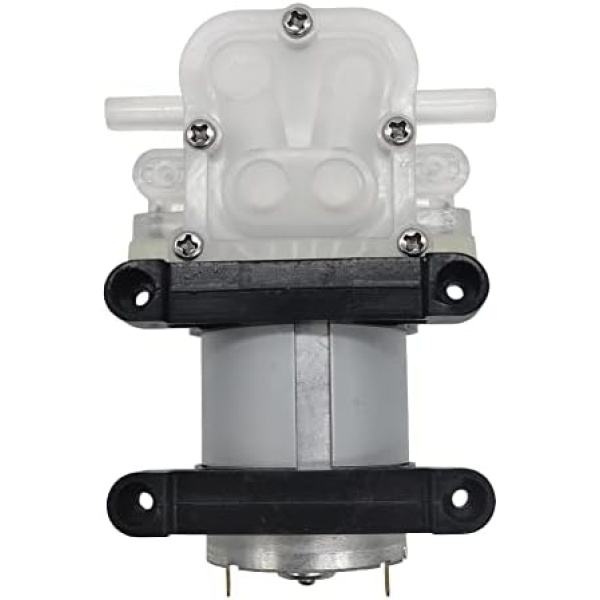

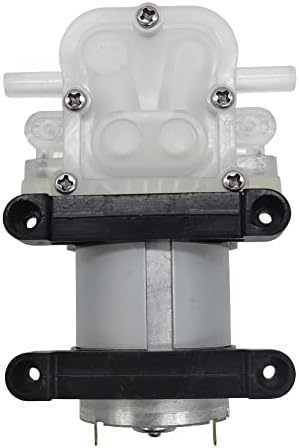

The soft rubber mounting plate can reduce vibration and noise. Can work continuously for a long time, suitable for drinking fountains, gardens, cooling systems, RV camping, household appliances
